In the nighttime petrochemical plant, a barely visible abnormal hot spot flickers silently in the gaps between pipes. A metal probe 30 meters away detects this dangerous signal in less than a second, silently transmitting an alarm to the central control room—this isn't a science fiction scenario, but a real-life example of the daily operation of a modern pyroelectric flame sensor.
In the dead of night, a faint flicker of fire suddenly appears in a corner of a commercial building. Before thick smoke forms or the temperature rises sharply, a special "eye" has already locked onto the flame, sending a precise alarm to the fire protection system within 3 seconds. This "eye" is the pyroelectric flame sensor.
In the critical early stages of a fire, it becomes the first line of defense in protecting fire safety in various spaces.
Working Principle: Precisely Capturing the Unique "Fingerprint" of Flames
The pyroelectric flame sensor's ability to identify flames stems from its unique ability to capture dynamic changes in thermal radiation. Its core uses a lithium tantalate single crystal as the sensitive element material. When the external infrared radiation changes, the crystal temperature changes accordingly, generating a detectable electrical signal.
To accurately identify flames rather than other heat sources, this sensor is equipped with a narrowband filter. This is the key technology—it acts like a special "filter glasses," only allowing infrared light in the characteristic wavelength band of flames to pass through.
When hydrocarbon substances burn, they produce infrared radiation concentrated around 4.3 micrometers, and also exhibit a specific flickering frequency. The sensor identifies this dual characteristic of "wavelength + flicker," distinguishing true flames from common interference sources such as solar radiation, electric lights, and heaters, achieving high-precision fire detection.
Technological Core: Why is it so Sensitive and Reliable?

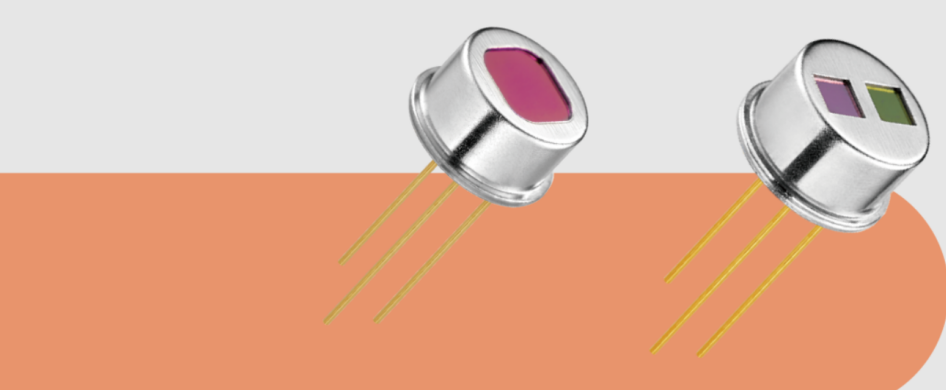

Taking the mainstream pyroelectric flame sensors on the market, such as the MFrontier MPY30 series products, as an example, their core technological advantages make them ideal "flame sentinels."
This sensor utilizes a lithium tantalate single crystal as the sensitive element material, boasting a Curie temperature exceeding 620℃, a low relative dielectric constant, and a high detection rate. It can sense and analyze the infrared spectrum band, exhibiting strong stability and high responsiveness.
This means it possesses excellent weak signal capture capabilities. Simultaneously, the sensor incorporates a built-in thermal compensation mechanism, effectively mitigating interference from ambient temperature changes and ensuring stable detection performance under different seasons and climatic conditions.
Its detection range reaches 35-50 meters, with a field of view of ≥60°, allowing it to detect distant fire sources and cover a wide area without blind spots.
Application Scenarios: Comprehensive Fire Warning System
The unique advantages of the pyroelectric flame sensor make it indispensable in fire monitoring in various locations.
In industrial gas turbines and large industrial furnace equipment, these sensors serve as the first line of defense against explosions and fires. Their non-contact monitoring characteristics ensure safe operation even in high-risk environments. In fire alarm systems for homes and commercial premises, it provides early flame detection capabilities that traditional smoke detectors cannot offer.
For fire-fighting robots and intelligent fire-fighting equipment, the pyroelectric flame sensor acts as their "eyes," helping them quickly locate fire sources in complex environments. In forest fire prevention and large warehouse monitoring, its long-distance detection capability demonstrates unique value, providing valuable warning time before the fire spreads.
Core Advantages: Early Warning and Low False Alarm Rate
Compared to traditional temperature and smoke detectors, the pyroelectric flame sensor offers significant advantages in fire monitoring. It can trigger an alarm as soon as a flame forms, long before smoke spreads or the temperature rises sharply, gaining valuable time for emergency response.
Through a dual verification mechanism, it significantly reduces the false alarm rate. Statistical data shows that, with proper installation and maintenance, the false alarm rate of high-quality pyroelectric flame detection systems can be reduced by more than 60% compared to traditional systems, avoiding resource waste and reduced public vigilance caused by false alarms.
Modern pyroelectric flame sensors typically employ a low-power design, with some models capable of operating in standby mode, making them particularly suitable for battery-powered or solar-powered remote monitoring points. It can also seamlessly integrate with other fire protection systems (such as automatic sprinklers, ventilation control, and emergency lighting) to form a complete fire safety response system.
Deep in the night, within a substation, an abnormal electric arc leaped between pieces of equipment, instantly igniting nearby insulating materials. Almost simultaneously, a pyroelectric flame sensor installed 15 meters away detected the flame's characteristic 4.35-micrometer radiation. The alarm lights in the central control room flashed urgently, and the automatic fire extinguishing system activated within three seconds, nipping this potentially major incident that could have caused a regional power outage in the bud.
The pyroelectric sensor silently guards the safety of human spaces, issuing a life-saving alarm at the first sign of fire.
