In the field of temperature measurement, contact and non-contact temperature measurement technologies have distinct characteristics due to their differing principles. Contact methods, such as thermocouples and resistance temperature detectors, achieve high accuracy through direct heat exchange, but require thermal equilibrium, leading to measurement delays. Furthermore, their high-temperature resistance limits their application to extreme temperatures, and prolonged exposure to high temperatures can reduce accuracy and lifespan. Non-contact methods, on the other hand, are based on the principle of "no contact," preserving the temperature field and adapting to complex scenarios involving high temperatures and moving targets. They offer fast response times (2-3 seconds), but are susceptible to emissivity, distance, and environmental interference, requiring calibration to ensure accuracy, thus increasing measurement complexity. MFroniter has been deeply involved in the field of infrared temperature measurement for many years. Its flagship product, the MTP10-A6F8 MEMS infrared thermopile temperature sensor, has undergone extensive market testing and customer validation, earning widespread trust and recognition for its superior performance and establishing a strong reputation and market standing within the industry.
I. The working principle and advantages of MEMS infrared thermopile technology

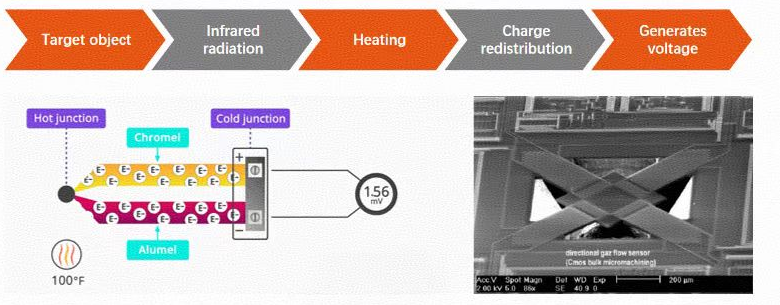

The MTP10-A6F8 sensor utilizes MEMS infrared thermopile technology. Its core principle is to use a thermopile chip to detect the infrared energy emitted by an object, converting the thermal energy into an electrical signal via the Seebeck effect. The sensor incorporates an 8-14μm bandpass filter to precisely select the target infrared wavelength, effectively suppressing external interference. Furthermore, a high-precision NTC thermistor is integrated to compensate for environmental temperature variations, ensuring stable measurements across the entire temperature range. After internal signal processing, the thermopile output provides an electrical signal directly proportional to the temperature, suitable for various secondary development applications.
As a typical MEMS infrared thermopile temperature sensor with analog output, the MTP10-A6F8 offers the following advantages:
MEMS Thermopile Chip：Manufactured using MEMS technology, it features a miniaturized chip design and high integration, suitable for small-size devices.

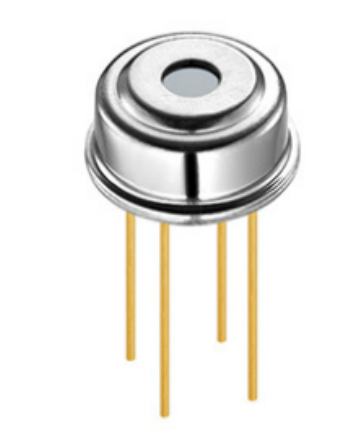

TO-39 Package：The TO-39 metal package is compact and provides excellent electromagnetic shielding and environmental protection.
High Sensitivity: Accurately detects weak temperature signals, enabling fast response and high-precision measurement.
8-14µm Bandpass Filter: Equipped with a self-developed 8-14µm bandpass filter, it precisely filters the target infrared wavelength band, effectively suppressing environmental interference.
High-Precision NTC: A built-in high-precision NTC thermistor provides real-time compensation for ambient temperature drift, ensuring stable measurements across the entire temperature range.

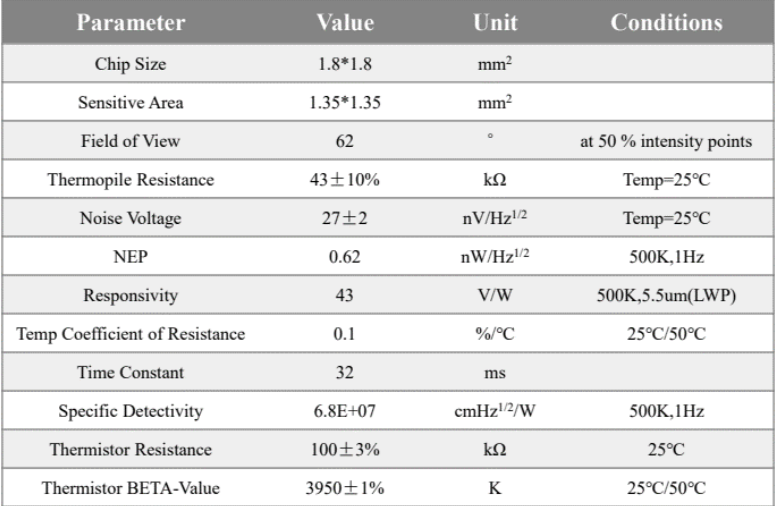

II. MTP10-A6F8 Product Performance

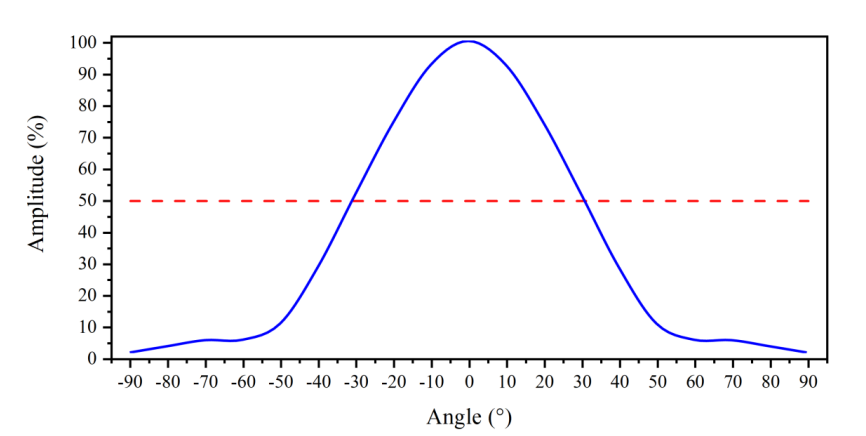

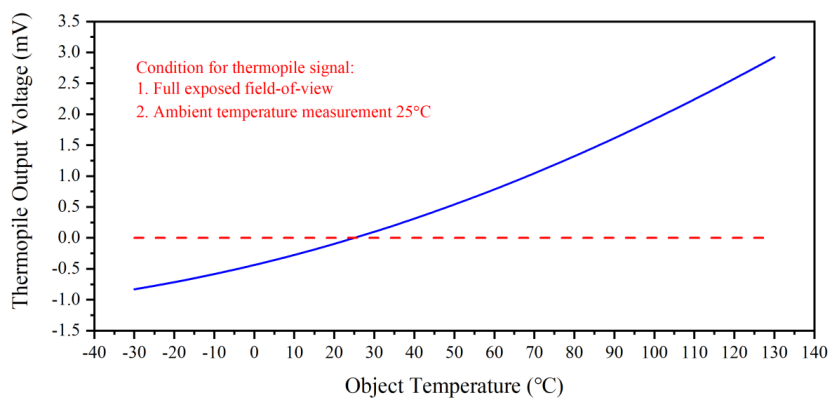

Typical Performance Curve

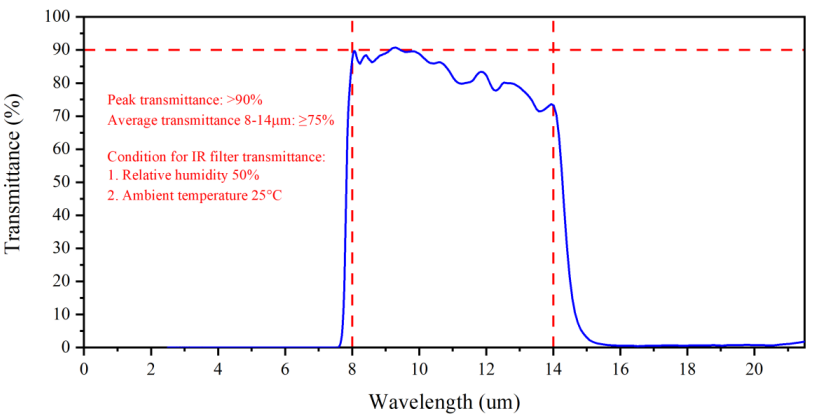

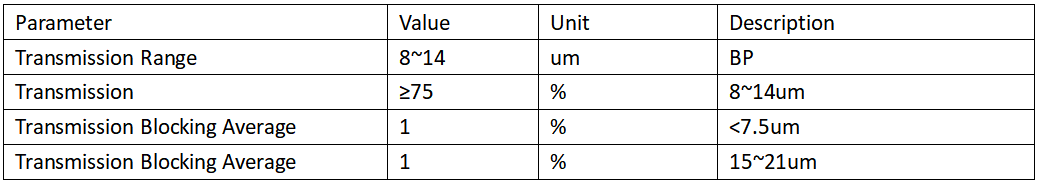

Filter Specification
III. MTP10-A6F8 Product Applications
1. Non-contact Temperature Measurement Devices: Suitable for non-contact temperature measurement modules in home appliances (e.g., microwaves, ovens) and medical devices (e.g., forehead thermometers, ear thermometers). These modules enable real-time monitoring of surface temperature without physical contact, enhancing user safety.
2. High-Temperature Thermometers: Integrated into handheld or fixed-position high-temperature thermometers, these devices allow remote monitoring of high-temperature objects, eliminating the risk of personnel exposure to high temperatures.
3. Continuous Temperature Monitoring in Manufacturing: Used in semiconductor and automotive manufacturing lines, these devices monitor temperature changes of equipment components in real time, providing early warnings of abnormalities and reducing equipment downtime.
4. Industrial Temperature Transmitters: As a core sensing element in industrial temperature transmitters, these devices output stable signals, enabling digital monitoring and closed-loop control of industrial process temperatures.
MFrontier specializes in MEMS sensor technology, focusing on the R&D of MEMS chips and sensors, with thermoelectric technology and algorithms as its core strengths. Its flagship product, MTP10-A6F8, with its miniaturized, high-precision, and reliable features, provides high-performance sensing solutions for non-contact temperature measurement applications in home appliances, industry, medical devices, and consumer electronics, thus supporting the development of smart hardware and industrial automation.
